icon Diode

Small Signal Schottky Diode

Small Signal Schottky Diode Portfolio

High-Reliability Signal & Protection Solutions

ANBON’s industrial small signal Schottky barrier diodes are high-performance components designed for switching, clamping, and protection functions in modern electronic systems. By utilizing a metal-to-semiconductor junction, these diodes deliver low forward voltage drop (VF) and fast switching performance, making them well suited for power-efficient designs and high-frequency signal processing.

Our industrial portfolio is engineered for reliable performance in demanding environments, offering optimized trade-offs between low conduction losses and controlled reverse leakage current. These devices are widely used in signal routing, rail-to-rail protection, low-power rectification, and high-speed switching applications for industrial control systems, IoT devices, and consumer electronics.

Portfolio

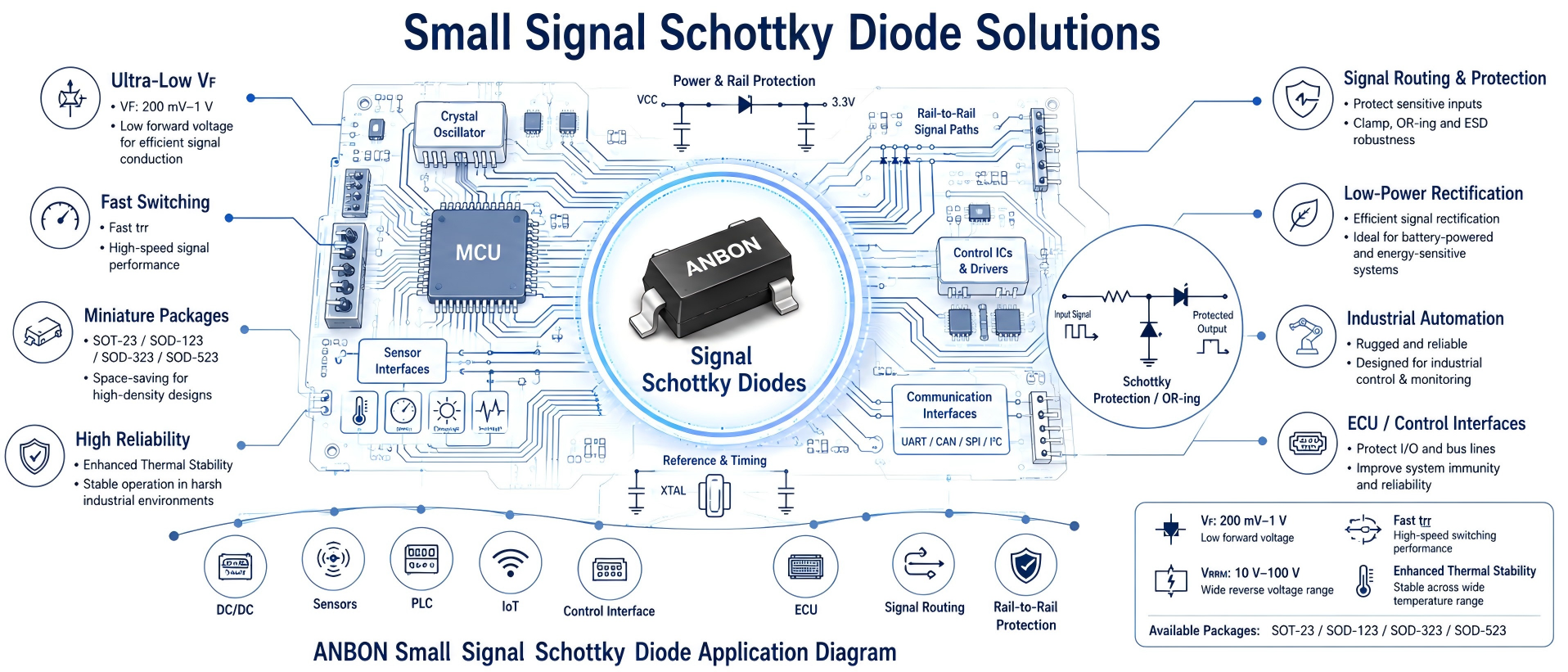

Small Signal Schottky Diode Portfolio

Key Features:

  • Ultra-low forward voltage: from 200 mV to 1 V to help improve system efficiency.
  • Fast switching performance: minimal reverse recovery time (trr) for high-frequency pulse applications.
  • Broad voltage range: repetitive peak reverse voltage (VRRM) from 10 V to 100 V.
  • Enhanced thermal stability: optimized for industrial operating temperature ranges.
  • Miniature packaging: available in industry-standard SMD packages such as SOT-23, SOD-123, SOD-323, and SOD-523 for compact designs.

Key Applications:

  • Signal routing and protection: ideal for clamping and rail-to-rail protection.
  • Low-power rectification: suitable for DC-DC conversion and discrete OR-ing functions.
  • Industrial automation: reliable performance in sensors, PLCs, and control interfaces.
  • Powertrain control: suitable for transmission control, ECU interfaces, and automotive electronic modules.
